ASTM F1798

ASTM F1717

Spine corpectomy model

ASTM F1798

Spinal implants - interconnections mechanisms and subassemblies

ASTM F2077

Spinal cage test

ASTM F2193

Spinal components

ASTM F2267

Spinal implants subsidence test

ASTM F2346

Spinal disc static and fatigue test

ASTM F2624

Extra discal motion preserving implants

ASTM F2694 / F2790

Lumbar total facet prostheses

ASTM F2706

Occipital-cervical and occipital-cervical-thoracic model

ASTM F2789

Mechanical and functional characterization of nucleus devices

ASTM F3295

Impingement wear testing of total disc prostheses

ASTM F3631

Cage impact test

ISO 12189

Spine corpectomy model with anterior support

ISO 18192-1

Spinal disc wear test

ISO 18192-2

Nucleus replacement wear test

ISO 18192-3

Impingement-wear testing of lumbar prostheses

ISO 21534

Particular requirements for joint replacement implants

ISO 23089-2

Spinal cage pre-clinical mechanical assessment

PI-52

Expulsion test

PI-76

Spinous process plates

Spinal implants - interconnections mechanisms and subassemblies

Normative References

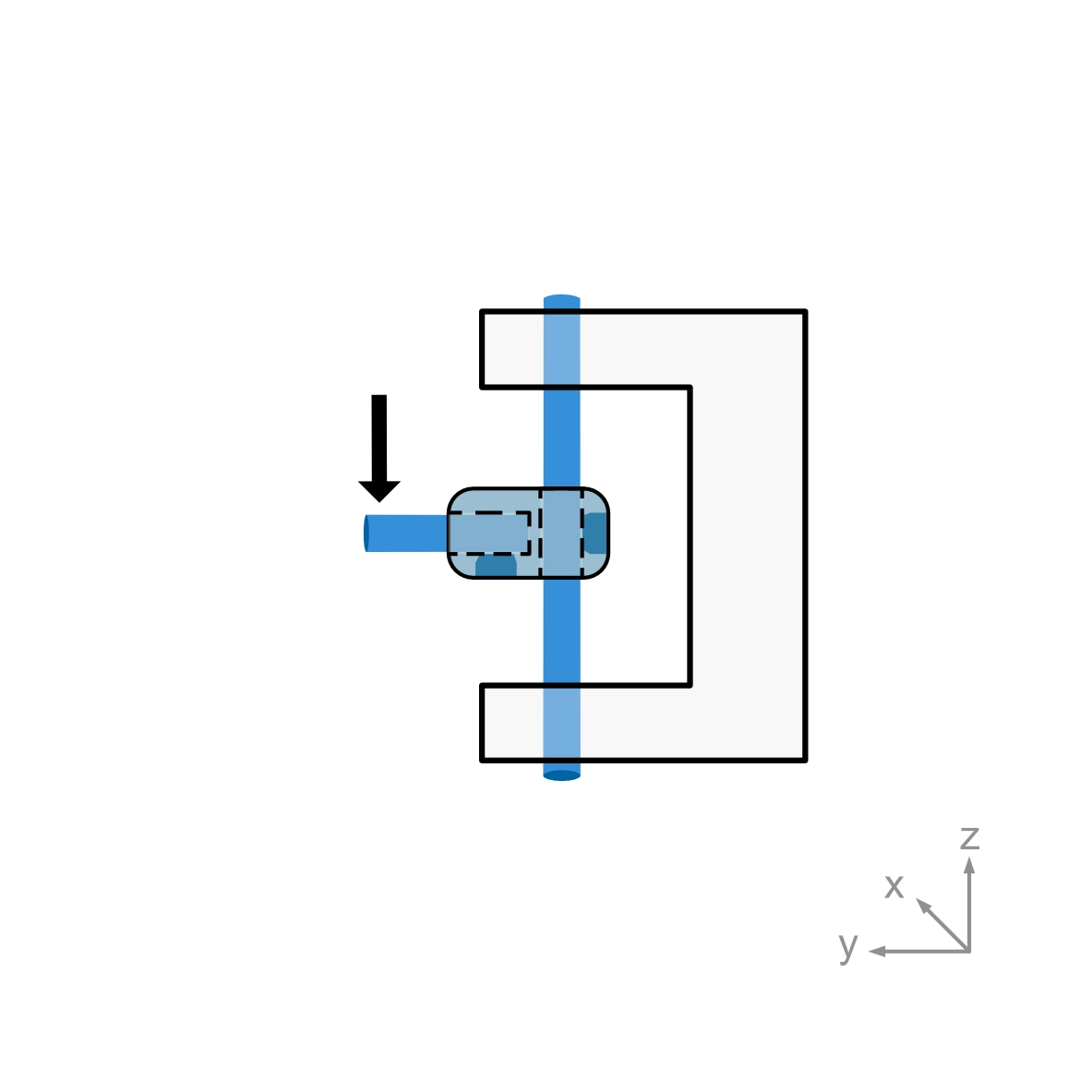

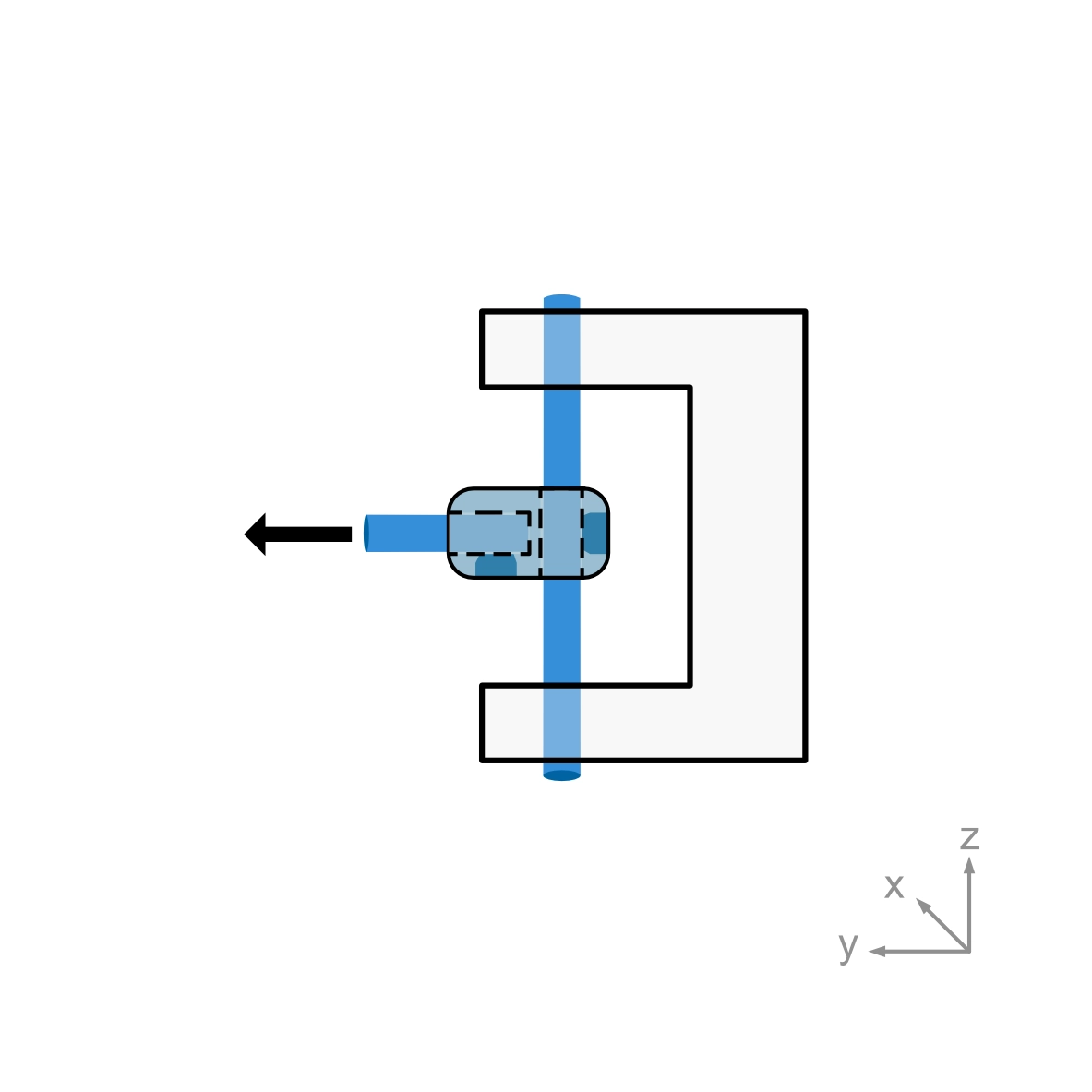

ASTM F1798: Evaluation of the static and fatigue properties of interconnection mechanisms and subassemblies used in spinal arthrodesis implants.

This test method covers the measurement of uniaxial static and fatigue strength, and resistance to loosening of the component interconnection mechanisms of spinal arthrodesis implants. The purpose of this test method is to provide a means of mechanically characterizing different designs of spinal implant interconnections. Ultimately, the various components and interconnections should be combined for static and fatigue testing of the spinal implant construct. It is not the intention of this test method to address the analysis of spinal implant constructs or subconstructs, nor to define levels of performance of spinal implants, as insufficient knowledge is available to predict the consequences of the use of particular spinal implant designs.
