ASTM F1672 (PI-95)

ASTM F1223

Knee constraint test

ASTM F1672 (PI-95)

Patella specification

ASTM F1814

Test of modular knee implants

ASTM F2009

Modular connection disassembly test

ASTM F2083 (PI-96)

Knee specification

ASTM F2722

Fatigue test baseplate/bearing fixation under torsional loading

ASTM F2723

Fatigue test baseplate/bearing fixation

ASTM F2724

Dislocation mobile bearing

ASTM F2777

Fatigue test under high flexion

ASTM F3140

Unicondylar tibial tray fatigue test

ASTM F3141

Knee loading profiles

ASTM F3161

FEA knee femoral component

ASTM F3210 / PI-73

Knee condyle fatigue test

ASTM F3334

FEA Tibial component

ASTM F3495

Ceramic knee failure load

ISO 14243-1/3

Knee wear test

ISO 14243-5

Durability performance patellofemoral joint

ISO 14879-1 / ASTM F1800

Tibial tray fatigue test

ISO 21534

Particular requirements for joint replacement implants

ISO 21536

Specific requirements for knee-joint replacement implants

ISO 7207-2

Knee surface analysis

PI-17

Knee contact pressure test

PI-53

Stemmed femoral knee component fatigue test

Patella specification

Normative References

ASTM F1672: Standard Specification for Resurfacing Patellar Prosthesis.

This specification covers patellar resurfacing devices used to provide a functioning articulation between the bones of the patella and the femur. This specification is intended to provide basic descriptions of material and device geometry. Additionally, those characteristics determined to be important for in-vivo performance of the device are defined.

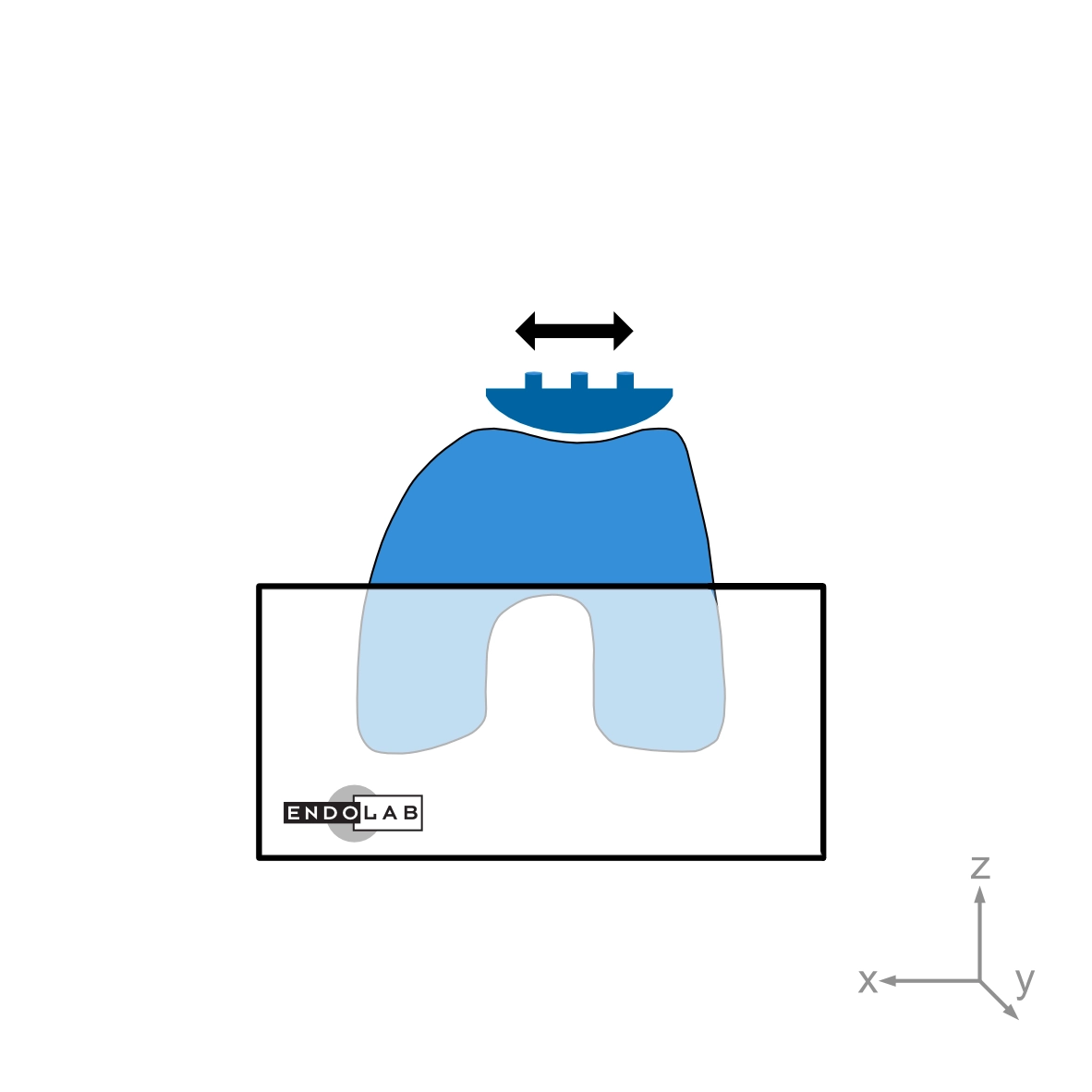

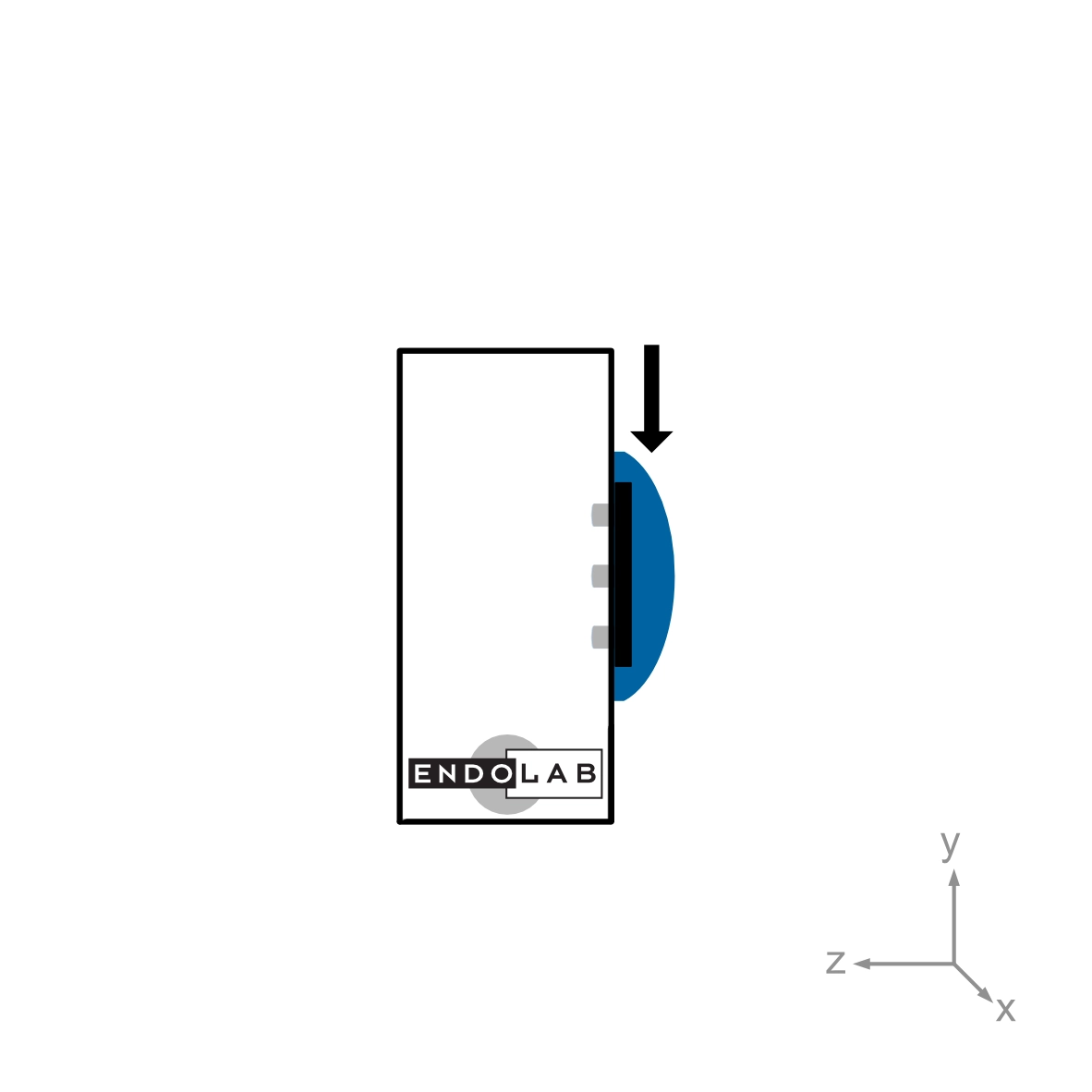

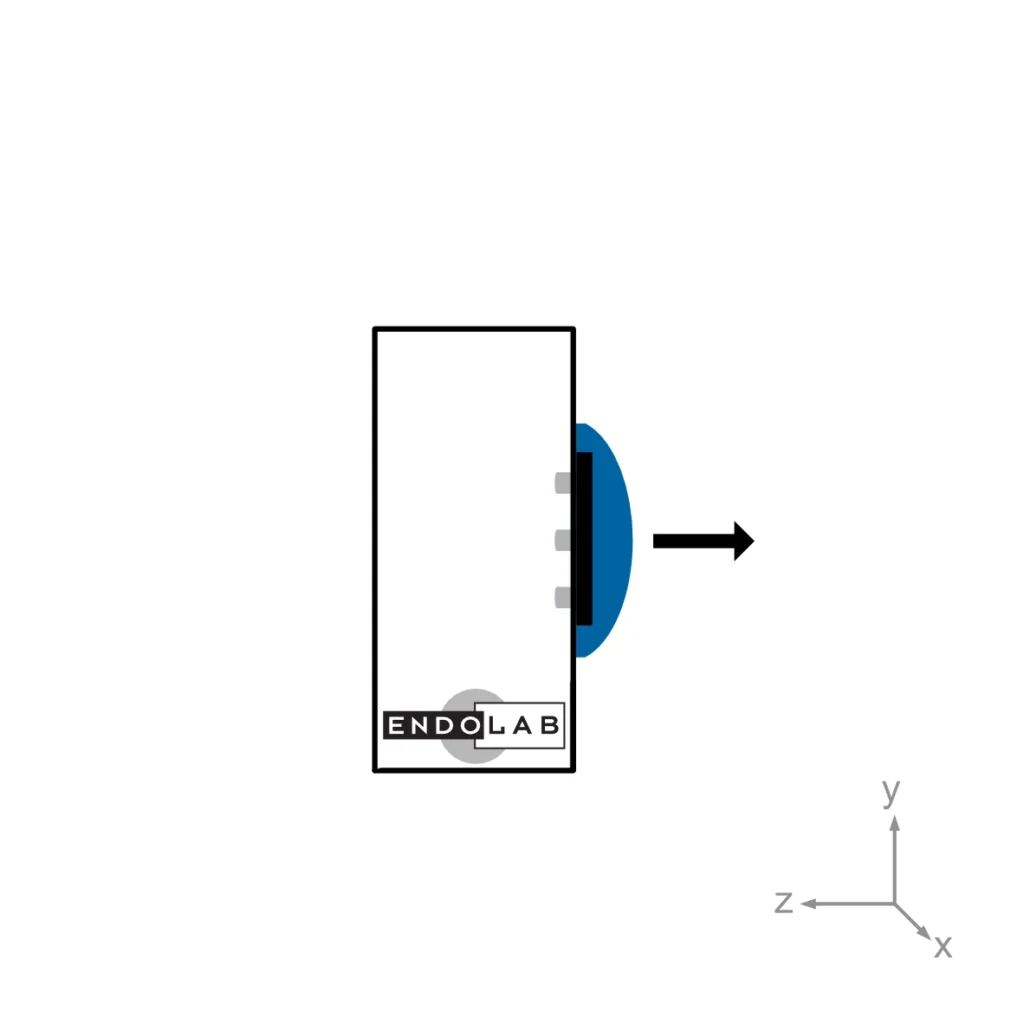

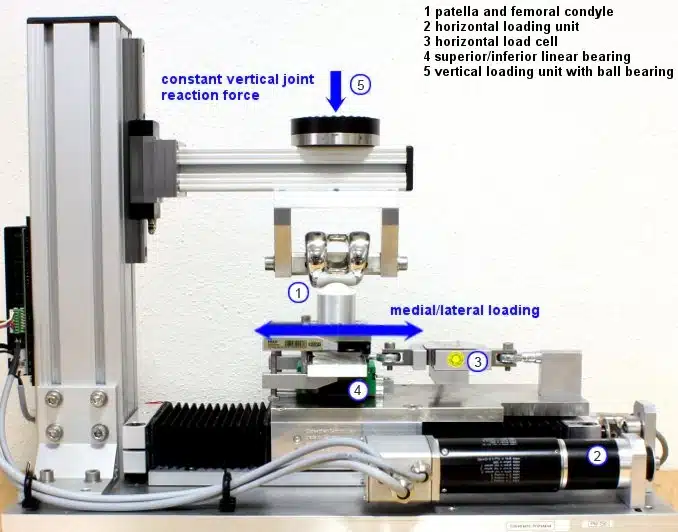

EndoLab® is offering a variety of mechanical tests, such as dislocation or lateral subluxation tests, component disassociation tests, fixation failure tests, device fracture tests, contact area and contact pressure tests, articular surface wear tests (ISO 14243-5), porous metal coating tests and others, specially designed for patella implants.

This standard was withdrawn with no replacement. We have transferred the ASTM standard into an internal, accredited testing standard.
